10Gbps CWDM DFB LD TO-CAN
Features:
•Wide temperature range operation from -10°C to+85°C
•High slope efficiency
•Speed up to 10Gbps

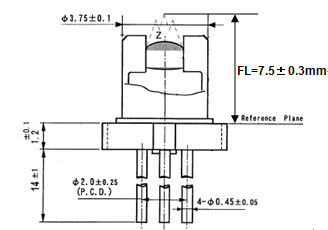

•TO-56 package
Product Specifications:
Absolute Maximum Ratings (T=25℃)
|
Parameter |
Symbol |
Unit |
Min |
Max |
Note |
|
Storage Temperature |
Tstg |
°C |
-40 |
+85 |
|
|
Operating Temperature |
Top |
°C |
-10 |
+85 |
|
|
Forward current(LD) |
Ifl |
mA |
|
120 |
|
|
Reverse voltage(LD) |
Vr |
V |
|
2 |
|
|
Maximum Power |
Po |
mW |
|
20 |
|
|
Solder Reflow Temperature |
Tsld |
℃ |
|
260 |
10 seconds max |
