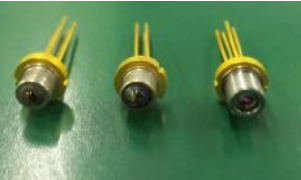

2.5Gbps 1550nm FP LD TO-CAN
Features:
•Wide temperature range operation from -40°C to+85°C
•High slope efficiency
•Speed up to 2.5Gbps
•TO-56 package
•Built-in InGaAs monitor or not
Product Specifications:
Absolute Maximum Ratings(T=25℃)
|
Parameter |
Symbol |
Unit |
Min |
Max |
Note |
|
Storage Temperature |
Tstg |
°C |
-40 |
+100 |
|
|
Operating Temperature |
Top |
°C |
-40 |
+85 |
|
|
Forward current(LD) |
Ifl |
mA |
|
150 |
|
|
Reverse voltage(LD) |
Vr |
V |
|
2 |
|
|
Maximum Power |
Po |
mW |
|
10 |
|
|
Solder Reflow Temperature |
|
℃ |
|
260 |
10 seconds max |
PIN-OUT and Focal Length
|
Pin Assignment |
Focal length |
||||
|
Number |
“01” |
“02” |
“03” |
Type |
Length(mm) |
|
PIN 1 |
LD- |
LD- |
LD- |
BL |
5.8±0.2/6.5±0.2 |
|
PIN 2 |
LD+(PD-) |
PD+ |
LD+ |
BBL |
6.5±0.2 |
|
PIN 3 |
Case |
LD+ |
Case |
AL |
6.5±0.2/7.5±0.3/10.1±0.3 |
|
PIN 4 |
PD+ |
PD- |
/ |
|
|
