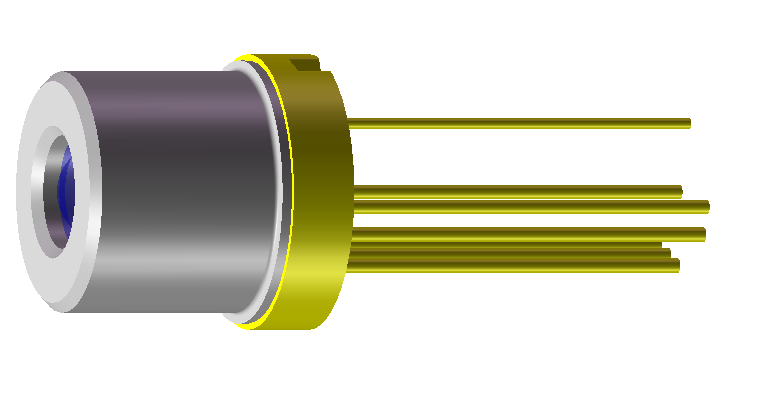

10Gbps 1550nm DWDM EML TO-CAN
Features:
•High extinction ratio
•High reliability laser and EA modulator
•DWDM wavelength of 1550nm band
•Rates up to 10.7Gbps
•50Ω single-ended data input
•TO-56 package with a thermal electric cooler
Product Specifications:
Absolute Maximum Ratings (T=25℃)
|
Parameter |
Symbol |
Unit |
Min |
Max |
Note |
|
Storage Temperature |
Tstg |
℃ |
-40 |
85 |
|
|
Operating Temperature |
Top |
℃ |
0 |
70 |
|
|
Solder Reflow Temperature |
Tsld |
℃ |
|
260 |
10 seconds max |
|
Forward current(LD) |
Ifl |
mA |
|
130 |
|
|
Reverse voltage(LD) |
Vrl |
V |
|
2 |
|
|
Reverse voltage (EA) |
Vrm |
V |
-3 |
1 |
|
|
Forward current(PD) |
Ifd |
mA |
|
2 |
|
|
Reverse voltage(PD) |
Vrd |
V |
|
20 |
|
|
Current(TEC) |
Ipe |
A |
|
1.2 |
|
|
Voltage(TEC) |
Vpe |
V |
|
1.5 |
|
